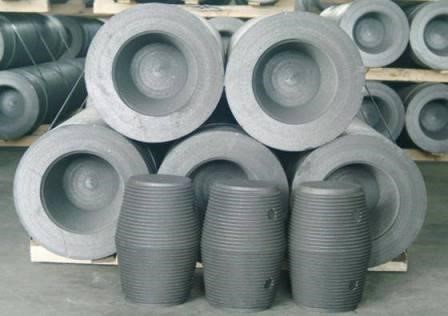

PARIZFAN CO. Provides this product in grades: RP, HP, UHP, SUHP (SupperUltraHighPower) for steel and ductile metallurgical plants and steel alloys industries as follow:
Dia:75/100/150/200/225/250/300/350/400/450/500/550/600mm/700mm/1500mm.
Length: 1000mm-2700mm
|
Physical Properties |
RP Grade |
HP Grade |
UHP Grade |
SUHP Grade |
|
|
Electrical Resistance (max) μΩ-m |
Electrode |
8.0 |
7.0 |
6.0 |
5.0 |
|
Nipple |
6.5 |
5.5 |
5.0 |
4.0 |
|
|
Bending Strength (min) Mpa |
Electrode |
11.0 |
12.0 |
12.0 |
13.0 |
|
Nipple |
14.0 |
14.0 |
16.0 |
16.0 |
|
|
Elastic Modulus (max) Gpa |
Electrode |
9.0 |
12.0 |
12.0 |
12.0 |
|
Nipple |
12.0 |
14.0 |
14.0 |
14.0 |
|
|
Bulk Density (min) g/cm3 |
Electrode |
1.55 |
1.65 |
1.68 |
1.70 |
|
Nipple |
1.60 |
1.70 |
1.78 |
1.80 |
|
|
C.T.E (max) ×10-6/C |
Electrode |
2.7 |
2.5 |
2.4 |
2.4 |
|
Nipple |
2.5 |
2.2 |
2.0 |
1.8 |
|
|
Ash (max) % |
Electrode |
0.30 |
0.30 |
0.20 |
0.20 |

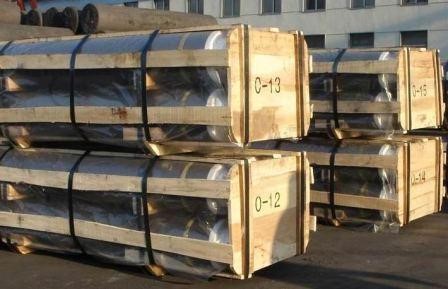

Packing:
The standard packing for graphite electrode says that this product should be carried and stored at the warehouses in Dust & humidity proof situation by covers in wooden cases and so its dimension would be determined easily as below:
