Graphite Blocks is applicable in metallurgical industries mainly, so we use them as casting at high temperature & high pressure.
The other important application of graphite blocks is their use in superconductivity and thermal convertors products.
|
|
 |
| بلوک های گرافیتی وارداتی شرکت پاریز فن گهر |

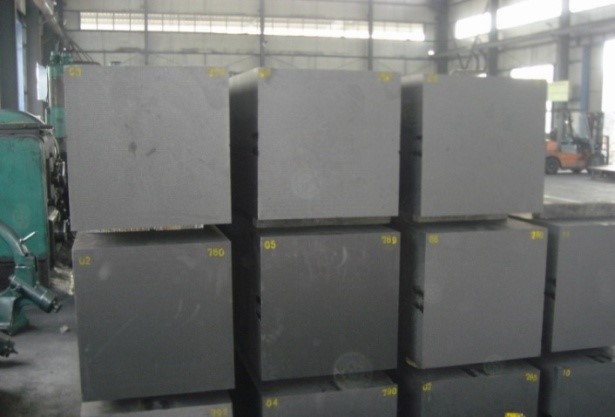

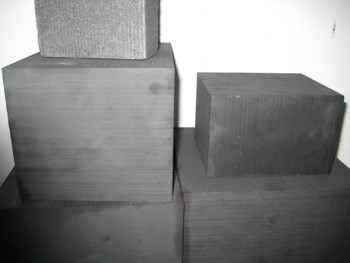

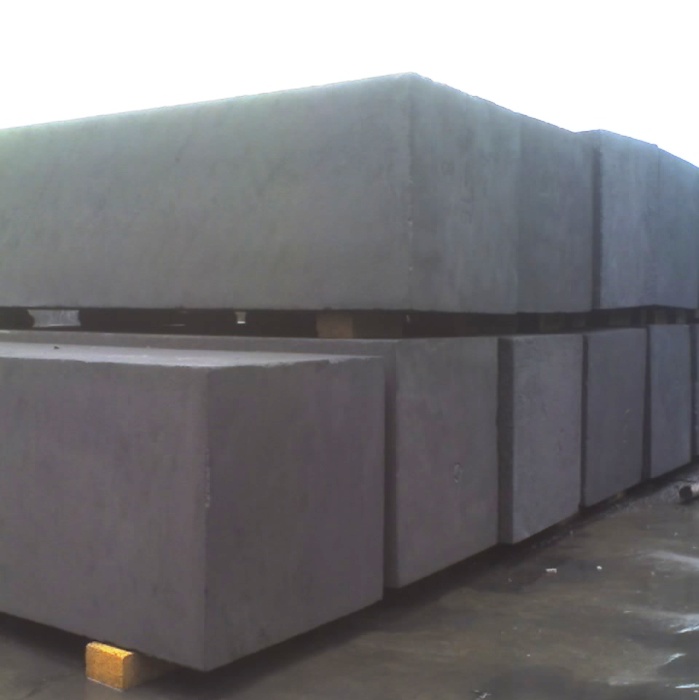

Our Available Graphite Blocks
| Grade | Physical Properties | |||||
|
Particle Size mm |
Flexural strength | Compressive strength | Electrical resistance | CTE | Ash | |
| Mpa | Mpa | μΩ-m | ×10-6/℃ | % | ||
| ZI_A3 | ≤ 0.2 | ≥18.0 | ≥68 | ≥10 | ≤2.8 | ≤0.1 |
| ZI_A2 | ≤ 0.3 | ≥16.0 | ≥50 | ≥12 | ≤0.1 | |
| ZI_A1 | ≤ 0.5 | ≥16.0 | ≥45 | ≥14 | ≤2.6 | ≤0.1 |
| ZI-A3 | ≤0.8 | ≥14.0 | ≥35 | ≥8.0 | ≤2.5 | ≤0.3 |
| ZI-A2 | ≥13.5 | ≥30 | ≥8.5 | |||
| ZI-A1 | ≥13.0 | ≥28 | ≥9.0 | |||
| ZI-B3 | ≤2.0 | ≥13.5 | ≥32 | ≥5.5 | ||
| ZI-B2 | ≥13.0 | ≥30 | ≥6.5 | |||
| ZI-B1 | ≥12.0 | ≥25 | ≥7.0 | |||
| ZI-C2 | ≤4.0 | ≥13.0 | ≥30 | ≥7.5 | ||
| ZI-C1 | ≥12.0 | ≥25 | ≥8.0 | |||
